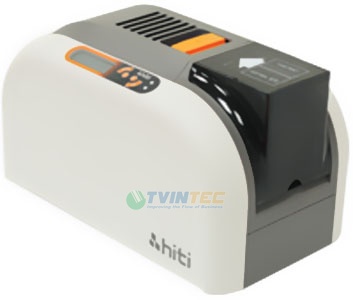

| Model Name | • HiTi ID card printer CS-200e |
| Print Technology | • Dye Sublimation (Direct-to-card) |
| Print Capability | • Edge-to-edge printing • One-sided or dual-sided printing* • Full color (YMCKO) and monochrome printing |
| Print Resolution | • 300dpi |
| Display | • LCM (Liquid Crystal Monitor) |
| Memory | • 32MB |
| Print Speed** | • Full color printing (YMCKO) up to 180 cards per hour • Monochrome black printing up to 1400 cards per hour |
| Card Format | • CR-80 ISO7810 (53.98mm x 85.60mm) Thickness from 0.25mm~1.0mm (10mil~40mil) |
| Input Capacity | • 100 cards (0.76mm / 30mil) |
| Output Capacity | • 50 cards (0.76mm / 30mil) |
| Supported OS | • Windows 2000, XP, Vista, Windows 7 (32/64-bit) |
| Bundled Software | • CardDésireé CS (For Windows PC only) |
| Computer Interface | • USB2.0, Ethernet (Optional Module Required) |
| Printer Dimension | • 197.8mm(W) x 354mm(L) x 204(H)mm |
| Printer Net Weight | • 4.9kg / 10.8lbs (print media excluded) |
| Operating Condition | • 15~32° C (59~89.6°F), 20~75% RH non-condensing |
| Print Media | • Full panel YMCKO 400 roll (Ribbon only), 16 rolls in a carton • 1/2 panel YMCKO 560 roll (Ribbon only), 16 rolls in a carton • Monochrome Resin Black 1000 roll (Ribbon only), 16 rolls in a carton • YMCKOK 330 roll (Ribbon only), 16 rolls in a carton |
| Optional Encoding Modules | • Contact Smart Card Encoding Module |
|
Optional Encoding Modules
(SDK upon request) |
• Contact smart IC chip encoding module
• Contactless (RFID) encoding module (ISO 14443A & B, ISO 15693) • Magnetic stripe card encoding module (ISO 7811 Hi-co/Low-co) |
| Other Options & Accessories |
• Flipper module • High capacity input hopper (400 cards loader) • Ethernet TCP-IP connection module – Availability to be updated • Cleaning roller (Dust arrester excluded) – Availability to be updated |
| |
|
