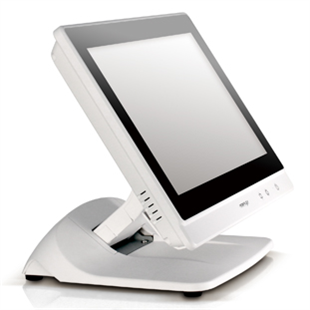

Máy POS Posiflex XT-3114

In today’s retail and hospitality market, POS terminal is no longer just a cold and hard business tool. It is a part of the store decoration, a part of the store image. Each curve and detail of the POS terminal should add something to the overall mood of the store, to lift the shopping experience of the customers.






With a 14” 16:9 Aspect Ratio wide screen, bezel free touch, beautifully sculptured slim body, sexily curved base stand, JIVA XT-3114 looks right at home at any elegantly decorated store. And more than just good looks, JIVA XT-3114 also offers ample of performance and flexibility to satisfy the most demanding of daily POS operations

• New slim design
• 14” 1366 x 768 wide screen TFT LCD
• Bezel-free Resistive touch
• New 7th generation foldable base that allows XT Series to be configured into different configurations
• New 8th generation foldable base that integrates internal power adaptor, Powered USB port, and UPS battery into the base stand
• Mini-PCIe expansion slot
• Dual LAN ports
• VESA mounting for flexible deployment



System Configuration
Processor	Intel D2550 / 1.86GHz / 1M Cache (dual core)
System Memory	DDR3 1066MHz SO-DIMM x 1, max. 4GB
Storage Device	SATA Storage x 2, factory default 320GB HDD x 1
RAID Function	N/A
Power Supply	12V / 60W
OS support	Windows XP Pro / POSReady 2009 / Windows 7 32bit / POSReady 7 32bit / Windows Embedded 8.1 Industry 32bit / Linux per request
Display & Touch
LCD Display	14" TFT LCD
LCD Resolution	default 1024 x 768, maximum 1366 x 768
Touch Function	Bezel-free PCAP touch (IP65 on front panel)
I/O & Expansion
Serial Port	4, DB9 x 3 + RJ50 x 1, 5V / 12V support on all COM ports
Parallel Port	1, via optional conversion cable
Standard USB Port	4
Powered USB	Optional 24V x 1 + 12V x 2 via 8th generation base
LAN Port	10 / 100 / 1000 Mb x 2
VGA Port	VGA x 1, 12V support for Posiflex monitors
CR Port	1, control 2 CR via optional Y-cable
PS/2 Keyboard	N/A
UPS Port	Yes
Audio	Internal 2W speaker x 1
Extension Slot	mini-PCIe slot x 1
Built-in Device
Built-in MSR	N/A
Built-in Keyboard	N/A
Built-in Printer	N/A
Built-in FPU	N/A
Built-in WIFI	mini-PCIe WIFI module
Built-in RFID Reader	N/A
Built-in Smartcard Reader	N/A
Built-in Handset & Mic	N/A
Built-in Webcam	N/A
Physical Dimension
Dimension (W x D x H in mm)	372 x 251.8 x 289.5
Weight (N. W. in kg)	3.8
Environmental
Operating Condition	0°C - 40°C, 20%RH - 90%RH (Equipped with HDD); 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition	-20°C - 70°C, 10%RH - 90%RH
